Typical Viz Mistakes That Distorting Values

In data visualization, some people distort data on purpose of misleading their audience but most people do this just because of their inexperience. This article will introduce three typical mistakes resulting in distortion.

Type 1: use area or volume

Our brains have got used to compare values by the length. Therefore, visualizing data in area or volume will raise the problematic issue.

For example, we now have two bars and circles with area 1 and 2 separately (Figure 1). After combining bars or circles, our brain can hardly tell that the area of the orange circle is twice the area of the blue circle whereas it's easy for bars. Basically, the reason is our brain compare circular areas by their diameters, i.e. the length (Cairo, 2013).

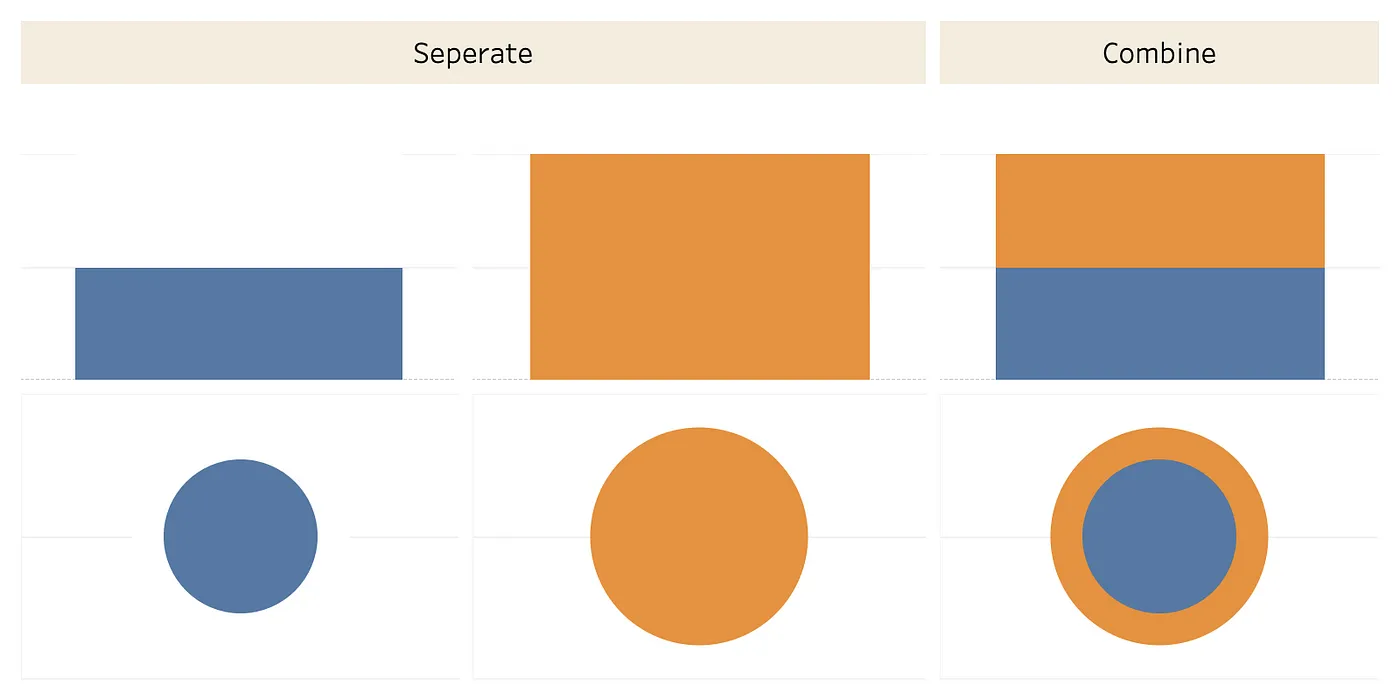

Fig 1. Use bars and circles to represent values

Fig 1. Use bars and circles to represent values

Type 2: rainbow color

Color changes in rainbows are not perceptually uniform (Szafir, 2018). For example, the length of yellow is shorter than the length of green (Figure 2). This feature even misleads people with normal color vision, much less those with color-blindness.

Fig 2. Rainbow color

Fig 2. Rainbow color

The alternatives of rainbow color are sequential or diverging color (Figure 3 and Figure 4). Matplotlib gives a guideline to use them.

Fig 3. Sequential color

Fig 3. Sequential color

Fig 4. Diverging color

Fig 4. Diverging color

Type 3: disappeared zero lines

The y-axis of some graphics doesn't start from zero, i.e. no 0-baseline. If the author doesn't emphasize it, I personally think it's a good bet that they try to mislead the audience deliberately.

For instance, figure 5 exaggerates the difference between the percentages of vote with obvious intention. Actually, there is no disparity between the two values (Figure 6).

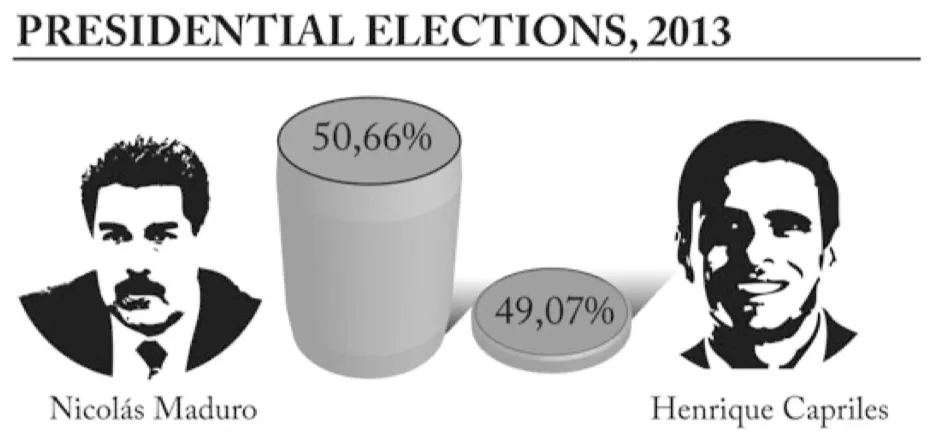

Fig 5. Presidential election results in Venezuela, based on a graphic by Venezonala de Televisión. (Cairo, 2015)

Fig 5. Presidential election results in Venezuela, based on a graphic by Venezonala de Televisión. (Cairo, 2015)

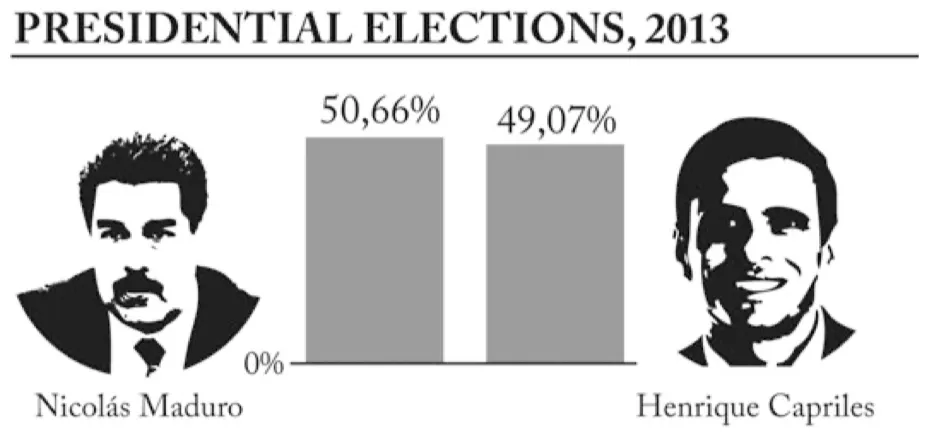

Fig 6. An alternative version: add a 0-baseline and remove the 3D effect (Cairo, 2015)

Fig 6. An alternative version: add a 0-baseline and remove the 3D effect (Cairo, 2015)
